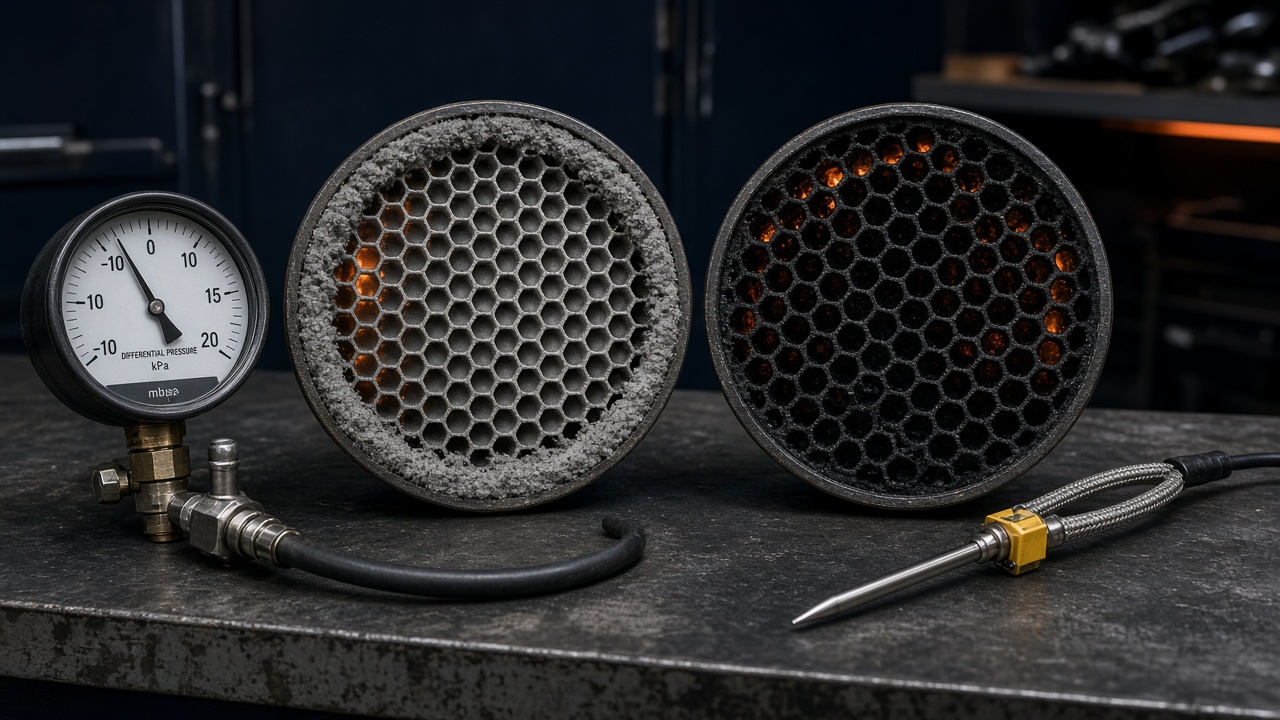

DPF Ash Load vs Soot Load: What Regens Actually Burn Off

Soot load in the DPF is burned off by regen (target below 40% on Cummins INSITE). Ash load is incombustible residue from engine oil that regen cannot remove — cleaning or replacement required above 80% ash. A filter at 30% soot but 95% ash will still throw SPN 3251 and high differential pressure after every regen. Ash accumulates at 0.02–0.05 quarts per 10,000 miles depending on oil formulation. Schedule off-vehicle cleaning at 250,000–400,000 miles or when ash load hits 80%, whichever comes first.

What Creates Soot in the DPF

Incomplete combustion produces particulate matter — carbon agglomerates captured in porous cordierite or silicon carbide substrate. Normal soot loading: 200–400 miles between passive regens highway.

High soot production: excessive idle, failed injectors, stuck EGR, short trip duty cycles aborting regen.

Soot load ECM estimate uses delta-P, mileage since regen, and fuel used.

What Creates Ash in the DPF

Every oil change leaves ash-forming elements that pass the rings as blow-by, burn in cylinder, and exit as incombustible oxide. CJ-4/CK-4 oils reduced ash vs older CI-4 but did not eliminate it.

Turbo seal oil consumption is the largest ash accelerator — 1 qt/1000 miles can fill a DPF in 150,000 miles.

Coolant from EGR leak adds silicate ash — different chemistry, same blocked pores.

Reading Soot and Ash in OEM Software

Cummins INSITE: DPF Soot Load % and DPF Ash Load %. Soot regen target: below 40% after successful regen. Ash service: clean or replace above 80–120% per bulletin.

Detroit: Soot Mass (grams) and Ash Load %. Ash above threshold triggers service lamp on some calibrations.

After DPF cleaning, mandatory ash/soot reset — wrong reset causes false 3251 codes.

Why Regens Fail on Ash-Full Filters

Regen burns soot layer on surface; ash sits deep in micropores. Pressure drops 10% after regen but baseline stays high — ECM schedules another regen in 80 miles.

Substrate cracking risk: repeated regen on blocked filter — thermal stress cracks ceramic. $4,000 replacement.

Use DPF calculator when ash high and soot cycles fail.

Differential Pressure as Combined Indicator

Clean filter: 4–8 in H2O highway cruise. Soot loaded: 12–18 in H2O. Ash loaded: high pressure even at 30% soot reading.

If post-regen pressure above 10 in H2O at idle cold — suspect ash.

Cleaning Methods for Ash Removal

Thermal regeneration in cleaning machine: 1,200°F+ blows ash from pores. Aqueous ultrasonic: good for mixed fleets.

On-vehicle cleaning: removes loose soot, minimal ash — marketing vs reality.

See off vs on vehicle DPF clean and cost guide.

Oil Choice and Ash Production Rates

Low-SAPS oil for 2020+ engines with DPF — fewer ash-forming metals. Do not downgrade to cheap CJ-4 without approval.

Oil analysis: raised calcium and zinc correlate with ash loading rate.

Fleet Ash Management Strategy

Schedule DPF clean at 300,000 miles highway baseline — adjust by oil consumption data.

Track ash % quarterly in PM software — trend line predicts clean date.

Pair ash service with valve adjustment and turbo inspection.

Replacement vs Cleaning Decision

Clean if substrate integrity good and ash only issue. Replace if cracked, melted, or 2+ failed cleans.

OEM DPF $2,800–$4,200; clean $350–$800. Cleaning 2–3 times per filter life typical.

Weight-Based Ash Estimation Method

Some DPF cleaning shops weigh filter before and after clean — ash removal typically 2–8 pounds on heavily loaded highway filter. If weight removed under 1 pound but ash load PID high — suspect ECM model error not physical ash.

Compare weight method with ECM ash load after reset post-clean — should correlate within 15%. Large divergence triggers ECM reflash consideration.

Document clean weight on fleet asset record — predicts next clean interval based on miles per pound ash accumulation rate.

How the ECM Models Ash Accumulation

Cummins ash model increments based on oil consumption estimate, fuel sulfur content, and engine hours since last ash reset. Ash reset only after off-vehicle cleaning or new DPF installation — incorrect reset corrupts model. INSITE Parameter 4116 (ash load percent) independent of Parameter 4114 (soot load).

Oil Formulation Impact on Ash Loading

API CK-4 maximum sulfated ash 1.0%. CJ-4 1.0%. Older CI-4+ 1.3%. Using gasoline-engine oil (3%+ ash) destroys DPF in under 50,000 miles. Low-ash 5W-30 CK-4 formulations reduce ash accumulation 10–15% versus 15W-40 in same application.

Cleaning Effectiveness by Ash Level

Ash below 80%: off-vehicle clean restores 90–95% flow. Ash 80–120%: clean may restore 70–85% — monitor diff pressure after. Ash above 120%: substrate may be structurally loaded — replacement recommended. Thermal cleaning at 1,100°F+ required for ash; pneumatic-only cleaning insufficient for ash removal.

OEM Interval Cross-Reference Table

Cummins X15: oil 25,000 mi/750 hr, fuel filters 25,000 mi/750 hr, valve lash 150,000 mi, DPF ash check 250,000–400,000 mi. Detroit DD15: oil 25,000 mi, valves 35,000 mi EPA17. Paccar MX: oil 20,000–25,000 mi. Always use whichever-comes-first rule.

Severe Duty Interval Adjustments

Short haul under 40 miles, idle above 30%, dusty conditions, or biodiesel B11+ cut standard intervals 30–50%. Hour-heavy vocational trucks (refuse, concrete) trigger PM on hours before miles. Telematics alert at 90% of interval prevents overdue service.

Parts Specification and Sourcing

Use API CK-4 15W-40 minimum for 2020+ low-ash requirements. Fleetguard, Donaldson, or OEM filters — verify application by engine serial. Counterfeit filters circulate on marketplace sites with incorrect micron rating.

Seasonal and Environmental Adjustments

Cold weather: winter fuel blend, pre-season filter change, DEF heater verification. Hot climate: shorten oil interval 15% in sustained 100°F+ ambient. High-altitude: monitor turbo boost and EGR function — derate calibrations differ above 5,000 feet.

Fleet PM Tracking Best Practices

Spreadsheet or CMMS tracking per unit: last service date, hours, miles, next due for each subsystem. Color-code overdue items. Monthly fleet meeting reviewing units exceeding average cost per mile by 2x.

Torque Specification Reference

Fuel filter: hand tight plus 3/4 turn per can instruction — over-torque crushes gasket causing air ingestion. Oil drain plug: 25–35 ft-lbs depending on pan material. Valve cover: 18 in-lbs in cross pattern. Always verify in OEM manual by engine serial.

Contamination Prevention Protocol

Cap all open fuel and oil ports immediately during service. Use clean rags and dedicated funnels. Never reuse crush washers on HP fuel fittings. Store filters in sealed packaging until installation — shop air contamination loads new filters before install.

Seasonal Service Adjustments

Pre-winter (September): fuel filters, battery test, block heater check, DEF heater verification, coolant concentration test. Pre-summer (April): A/C performance, cooling system pressure test, air filter inspection for pollen loading, tire pressure adjustment for heat expansion.

Fluid Specification Quick Reference

Engine oil: API CK-4 15W-40 minimum (Shell Rotella T6, Mobil Delvac Extreme, Valvoline Premium Blue). Coolant: ethylene glycol 50/50 to -34°F, test with refractometer annually. DEF: API certified ISO 22241, 32.5% urea, store below 86°F. Power steering and brake fluid per OEM spec on cab chassis.

Filter Part Number Cross-Reference

Cummins ISX15: oil LF14000NN (Fleetguard), fuel primary FS53000, fuel secondary FF5825, air AF25708. Detroit DD15: oil LF14000NN equivalent, fuel A0000904251. Cross-reference Donaldson, Wix, and Baldwin equivalents in Fleetguard catalog — verify micron rating matches OEM spec.

Pre-Service Inspection Checklist

Before any PM service: pull active fault codes, check fluid levels, inspect for leaks, note tire condition, verify last service date against interval. After service: road test 5 minutes, re-check levels, reset maintenance reminder in ECM if equipped, update fleet tracking spreadsheet.

Record Keeping for Warranty and Resale

Maintain service records per unit: date, hours, miles, parts installed with part numbers, technician name, and next due dates. Buyers and warranty auditors request complete maintenance history. Digital records in fleet CMMS preferred over paper — searchable by VIN and date range.

Fleet PM Cost Benchmarking

Track cost per mile for PM services across fleet. Industry benchmark: $0.08–$0.15/mile all-in PM for Class 8 linehaul. Vocational fleets (refuse, dump) run $0.12–$0.20/mile due to hour-heavy duty cycle. Units exceeding fleet average PM cost by 50% warrant individual review — may indicate abuse, wrong duty cycle classification, or mechanical problem increasing wear rate.

Compare OEM scheduled maintenance cost against actual shop invoices quarterly. Adjust intervals based on oil analysis results and operating conditions rather than blindly following generic schedule.

Fleet PM Cost Benchmarking

Used Oil Disposal and Environmental Compliance

Collect used oil in labeled containers — never mix with coolant, fuel, or DEF. Used oil recycler pickup every 90 days for shops generating over 55 gallons. Manifest required for transport. Oil filter crushing: drain filter 24 hours before disposal, crush to remove residual oil. Violations: EPA fines $25,000+ for improper disposal.

DEF waste (contaminated or expired) is not used oil — separate container, label hazardous. Small quantities may go to hazardous waste collection event. Bulk DEF spill: contain with absorbent, do not wash into storm drain.

Tool Calibration and Measurement Accuracy

Torque wrenches: calibrate annually or after 5,000 cycles. Pressure gauges: verify against known reference quarterly. Refractometer for DEF: zero with distilled water before each use. Multimeter: verify against known voltage source monthly. Inaccurate measurements cause misdiagnosis — wrong torque strips threads, wrong DEF reading condemns good fluid.

Heavy-Duty Diesel Technical Reference

Cummins Platform Quick Reference

ISX15/X15 CM2350/CM2450: oil 25,000 mi/750 hr, fuel filters 25,000 mi/750 hr, valve lash 150,000 mi, DPF ash check 250,000–400,000 mi. Key SPNs: 3251 (DPF soot), 4364 (SCR efficiency), 3216 (NOx sensor), 1569 (derate), 641 (VGT actuator). INSITE required for regen, inducement reset, and injector coding. INLINE 7 or Nexiq USB-Link 3 adapter.

Detroit Platform Quick Reference

DD13/DD15/DD16 EPA17: oil 25,000 mi, valve adjustment 35,000 mi, DPF soot in grams (70g regen threshold). Key SPNs: same J1939 mapping as Cummins. DiagnosticLink required for static regen and aftertreatment reset. DDDL adapter or Nexiq pass-thru.

Common Torque Specifications

DPF V-band clamp: 18–25 ft-lbs. NOx sensor: 35–45 Nm. Fuel filter: hand tight plus 3/4 turn. Oil drain plug: 25–35 ft-lbs. Injector hold-down (X15): 37 ft-lbs. Turbo actuator mounting: per Holset spec in service manual. Over-torque on exhaust clamps crushes flanges causing repeat leaks.

Aftertreatment Temperature Reference

DPF active regen: exhaust outlet 1,000–1,200°F. SCR operation: inlet 400–650°F. DOC light-off: 350°F minimum. NOx sensor ready: 650–800°F internal cell temperature. Do not work on exhaust components below 150°F touch temperature — still causes burns. Allow 45-minute cool-down after highway operation before under-vehicle work.

DEF Specification Summary

API certified ISO 22241. Concentration: 32.5% urea ±0.5%. Freeze point: 12°F. Shelf life: 12 months at 75°F. Test with refractometer — not color or smell alone. Contaminated DEF is the leading root cause of SPN 4364. Drain and flush tank if concentration below 30%. Replace inline filter after any contamination event.

Frequently Asked Questions

Can I regen ash out of a DPF?

No. Regen temperature cannot oxidize metal ash. Cleaning machine or replacement required.

What ash load percentage requires cleaning?

Cummins: service recommended above 80%, mandatory above 120%. Verify current bulletin for your ECM calibration.

Does ash load show on dash?

Usually not — requires scan tool. Some fleets add telematics PID logging.

How fast does ash accumulate?

Highway well-maintained: 300,000–500,000 miles to cleaning threshold. High oil consumption: 150,000 miles.

Will deleting DPF eliminate ash concern?

Illegal on-highway. Ash discussion applies to legal DPF-equipped operation only.
