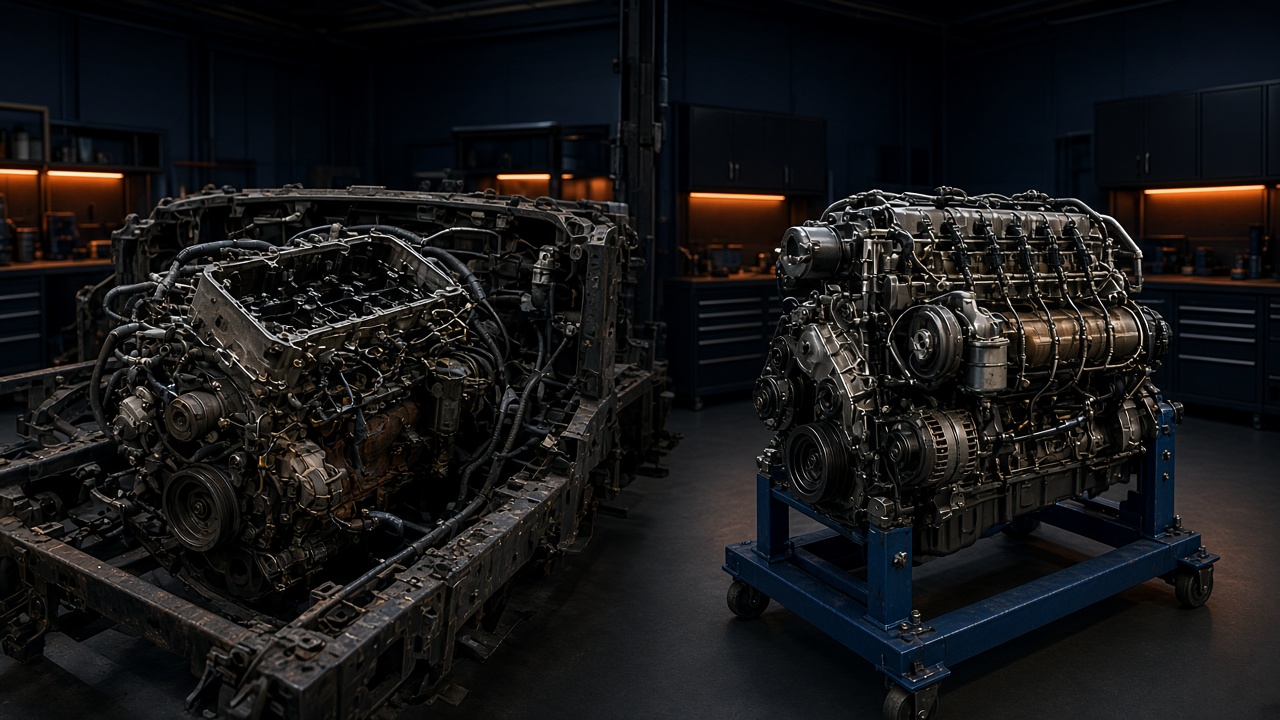

Diesel Engine Overhaul Cost: In-Frame vs Out-of-Frame Comparison

In-frame diesel overhaul costs $18,000–$28,000 for Cummins ISX15 or Detroit DD15 including gaskets, bearings, rings, and 40–60 hours labor. Out-of-frame (drop and rebuild) runs $28,000–$45,000 with machine shop work on crank, head, and block. Choose in-frame when cylinder wall taper is under 0.005 inch, crank journals measure within spec, and head passes pressure test. Out-of-frame when liner scoring, spun bearing, or coolant contamination requires block machining — warranty on in-frame with scored cylinders fails within 50,000 miles.

All pricing ranges are US market estimates excluding tax and vary by region, dealer vs independent labor rate, and parts availability. Request written quote with parts numbers before authorizing repair above $1,000.

What In-Frame Overhaul Includes

Replace cylinder liners, pistons, rings, connecting rod bearings, main bearings (if accessible), head gasket, upper gasket set. Hone liners, measure crank journals in place.

Does not include: removing block, crankshaft removal, line boring, block welding.

Labor: 40–70 hours independent shop, 50–80 dealer.

What Out-of-Frame Overhaul Includes

Engine removal, complete disassembly, machine shop magnaflux crank, align bore, new or reground crank, cam bearings, full gasket kit, oil pump, potentially turbo and injectors.

Labor: 80–150 hours plus machine shop $2,000–$5,000.

Cummins ISX15 / X15 Cost Ranges 2026

In-frame OEM parts kit $6,500–$9,500, aftermarket $4,500–$7,000. Labor $5,600–$11,200 at $140/hr.

Out-of-frame total $32,000–$52,000 typical. Reman long block $18,000–$25,000 plus R&R labor.

Detroit DD15 Cost Ranges

In-frame slightly higher parts cost — DD15 kit $7,500–$11,000. Out-of-frame $35,000–$58,000 metro dealer.

When In-Frame Is Appropriate

Single or two-cylinder low compression, crank journals within spec, no coolant in oil history, block not overheated.

Oil analysis showed gradual iron rise — not sudden bearing failure metal.

When Out-of-Frame Is Mandatory

Crank scoring, spun bearing, connecting rod bend, block crack suspicion, catastrophic overheating.

Turbo failure sent metal through engine — inspect all passages.

Reman vs Field Rebuild

OEM reman long block warranty 1–2 years — premium price, faster turnaround 5–10 days.

Field rebuild controlled cost — quality depends on shop and parts source.

Hidden Costs and Downtime

Rental truck $800–$1,500/week. Tow $400–$800. Aftertreatment R&R if engine out adds 15 hours.

Core charges on block if exchanged.

Warranty and Fleet Decision Matrix

Truck value under $40,000 with 600k+ miles: in-frame if bore scope clean, else replace truck.

Low-mile failure under warranty: dealer OEM overhaul only.

Option	Parts	Labor	Total	Downtime
In-frame ISX15	$5,000–$9,500	50–70 hr	$15,000–$28,000	1–2 weeks
Out-of-frame ISX15	$10,000–$20,000	100–140 hr	$28,000–$55,000	3–6 weeks
Reman long block	$18,000–$25,000	30–50 hr	$25,000–$40,000	2–3 weeks

Break-In Procedure After Overhaul

OEM break-in: vary load first 500 miles, no sustained max power first 100 miles, oil change at 5,000 miles post-overhaul regardless of interval.

Monitor oil pressure and coolant temp closer first two weeks.

Oil sample at 5,000 and 15,000 post-overhaul — catch assembly debris early.

In-Frame Scope and Limitations

In-frame: liners (if removable), pistons, rings, bearings, gaskets, oil pump. Head removed for valve work and head gasket. Crank stays in block — measure journals in place. Limitation: cannot machine crank or block decks without removal.

Out-of-Frame Additional Work

Block removed: magnaflux crank, grind journals, bore/hone cylinders, deck surfaces, new cam bearings. Machine shop: $3,000–$8,000 additional. Justified when taper exceeds 0.005 inch, crank scored, or coolant contamination pitted block.

Break-Even Mileage Analysis

In-frame on healthy block: target 400,000+ miles before next major. Out-of-frame with full machine work: 600,000+ miles. If chassis has 800,000+ miles and third engine event, NPV analysis favors replacement truck over $40,000 out-of-frame on aging frame.

Regional Cost Variation Factors

Labor rates vary $40–$60/hr between rural and metro markets. Parts availability affects markup — dealer network faster but pricier. Core charges on turbos, injectors, ECMs: $500–$2,000 deposit, 30-day return window.

Repair vs Replace Decision Framework

Rebuild when core components measure within spec and failure is isolated (actuator, bearing). Replace when substrate cracked, shaft scored, or cumulative wear exceeds machine shop economics. TCO spreadsheet over 3 years includes warranty, downtime, and repeat failure risk.

Warranty and Core Return Management

OEM rebuilt components carry 12–24 month warranty. Aftermarket varies 90 days to 12 months. File core return within vendor deadline — missed forfeits $500–$2,000. Keep invoice with part number for CARB audit.

Hidden Costs and Contingency Planning

Flat-rate guides understate aftertreatment when rusted clamps, stripped V-bands, or cascade faults appear mid-repair. Add 1–2 hours contingency on first-time engine family through shop. Under-quoting DPF/SCR jobs damages margin.

Fleet Budget Planning Templates

Track cost per truck per quarter for aftertreatment, fuel system, turbo. Units exceeding fleet average 2x get targeted replacement or intensive PM. Telematics fault code trending identifies problem trucks before catastrophic failure.

Quote Template for Customer Communication

Itemize: diagnostic time (1–2 hours), parts with part numbers, labor hours with rate, shop supplies, environmental disposal fees, and tax. State warranty terms on parts and labor. Note contingencies: rusted clamps, cascade faults, core charges. Under-promise on timeline, over-deliver on communication.

Payment and Fleet Account Terms

Fleet NET 30 with credit application and insurance certificate. Retail: payment at pickup. Major jobs over $5,000: 50% deposit on parts ordered. Core charges collected upfront, credited on return within 30 days.

Regional Labor Rate Survey 2026

Independent diesel shop: $120–$175/hr (rural $120–$140, metro $150–$175). Dealer: $150–$210/hr. Mobile roadside: $175–$250/hr plus mileage. Fleet captive shop: $85–$110/hr internal rate. Aftertreatment specialist premium: +$15–$25/hr above general diesel rate.

Parts Markup Guidelines

Hard parts (turbo, DPF, SCR, injectors): 25–40% markup. Filters and fluids: 30–50% markup. Competitive items (oil, DEF): 15–25% markup. Core charges passed through at dealer cost. State markup disclosure requirements vary — check local consumer protection rules.

Total Cost of Ownership Framework

TCO per truck per year: fuel + maintenance + downtime + compliance. Track cost per mile by component system (aftertreatment, fuel, turbo, engine). Units exceeding fleet average 2x in any category get targeted inspection or replacement evaluation. Spreadsheet template: 12-month rolling average by VIN.

Negotiating Fleet Repair Contracts

Fleet contracts: negotiate labor rate locked 12 months, parts at cost-plus-25%, priority scheduling, and 24-hour turnaround guarantee on aftertreatment. Include annual PM per truck at fixed price. Exclusions: collision damage, abuse, non-OEM modifications. Review contract quarterly against actual cost per truck — adjust pricing annually based on data.

Independent shop advantage over dealer: lower labor rate, faster scheduling, personalized service. Disadvantage: may lack ECM security access for some platforms — disclose limitations upfront.

Negotiating Fleet Repair Contracts

Core Return and Remanufactured Parts Economics

Turbo core: $800–$1,500. Injector core: $200–$400 each. ECM core: $1,500–$2,500. DPF core: $500–$1,200. Return within 30 days in original packaging — damaged core forfeits deposit. Remanufactured turbo with new actuator: $1,400–$2,200 versus new $2,800–$4,500. Reman warranty 12 months versus new 24 months — factor in TCO calculation.

Track core return dates in shop management system — missed deadline is pure margin loss. Assign core return responsibility to service writer at job closeout, not technician.

Shop Management Software Integration

Connect diagnostic tool export to shop management system work order. Auto-populate fault codes, VIN, and mileage from scan tool PDF. Track parts cost versus estimate in real time. Flag jobs exceeding estimate by 20% for service writer review before continuing. Monthly report: average ticket, comeback rate, bay utilization, and gross margin by service category.

Integration reduces administrative time 30–45 minutes per job — technician focuses on diagnosis, not paperwork. Fleet accounts require itemized invoices with part numbers for their AP system.

Heavy-Duty Diesel Technical Reference

Cummins Platform Quick Reference

ISX15/X15 CM2350/CM2450: oil 25,000 mi/750 hr, fuel filters 25,000 mi/750 hr, valve lash 150,000 mi, DPF ash check 250,000–400,000 mi. Key SPNs: 3251 (DPF soot), 4364 (SCR efficiency), 3216 (NOx sensor), 1569 (derate), 641 (VGT actuator). INSITE required for regen, inducement reset, and injector coding. INLINE 7 or Nexiq USB-Link 3 adapter.

Detroit Platform Quick Reference

DD13/DD15/DD16 EPA17: oil 25,000 mi, valve adjustment 35,000 mi, DPF soot in grams (70g regen threshold). Key SPNs: same J1939 mapping as Cummins. DiagnosticLink required for static regen and aftertreatment reset. DDDL adapter or Nexiq pass-thru.

Common Torque Specifications

DPF V-band clamp: 18–25 ft-lbs. NOx sensor: 35–45 Nm. Fuel filter: hand tight plus 3/4 turn. Oil drain plug: 25–35 ft-lbs. Injector hold-down (X15): 37 ft-lbs. Turbo actuator mounting: per Holset spec in service manual. Over-torque on exhaust clamps crushes flanges causing repeat leaks.

Aftertreatment Temperature Reference

DPF active regen: exhaust outlet 1,000–1,200°F. SCR operation: inlet 400–650°F. DOC light-off: 350°F minimum. NOx sensor ready: 650–800°F internal cell temperature. Do not work on exhaust components below 150°F touch temperature — still causes burns. Allow 45-minute cool-down after highway operation before under-vehicle work.

DEF Specification Summary

API certified ISO 22241. Concentration: 32.5% urea ±0.5%. Freeze point: 12°F. Shelf life: 12 months at 75°F. Test with refractometer — not color or smell alone. Contaminated DEF is the leading root cause of SPN 4364. Drain and flush tank if concentration below 30%. Replace inline filter after any contamination event.

Machine Shop Services and Lead Times

Crank grind: $300–$600. Block bore/hone: $400–$800 per cylinder. Head resurfacing: $200–$400. Valve job: $300–$600. Lead time 2–4 weeks for machine shop work — factor into customer downtime estimate. In-frame overhaul avoids machine shop wait when block and crank measure within spec.

Quick Reference Summary

Verify all repair work with OEM scan tool before returning unit to service. Document part numbers, labor hours, and measurements on work order. Customer communication on downtime and operational changes prevents repeat failures. Schedule follow-up scan at 500 miles for aftertreatment repairs to confirm monitor completion and code absence.

Shop and Fleet Best Practices

Train drivers on regen completion — interrupted regen is the leading preventable cause of DPF-related roadside events. Use API-certified DEF from reputable supplier — test bulk tank quarterly with refractometer. Track engine hours alongside mileage for vocational fleet PM scheduling. Maintain scan tool subscription current — expired license blocks regen and inducement reset when customer needs it most. Second-tech quality check before unit leaves bay catches loose clamps, missed connectors, and tools left in engine compartment.

Measurement and Documentation Standards

Log all diagnostic measurements on work order: pressure readings, temperature values, electrical test results, and fluid test concentrations. Photograph failed components and contamination evidence. Attach scan tool PDF export showing fault status before and after repair. Warranty claims and fleet audits require documented measurements — verbal diagnosis without numbers fails audit review.

Always verify specifications against current OEM service literature by engine serial number before applying torque values, test limits, or part numbers stated in this guide.

Cross-reference all diagnostic steps with the OEM service procedure for the specific engine serial number. Mid-year calibration updates and bulletin revisions supersede generic guidance. When in doubt, contact OEM technical support with complete fault data before authorizing major component replacement.

Frequently Asked Questions

Is in-frame overhaul worth it?

Yes when crank and block are sound — saves $15,000+ vs out-of-frame.

How many miles after in-frame?

300,000–500,000 miles possible with good break-in and oil analysis program.

Does warranty cover overhaul?

Powertrain warranty rarely at high mileage — emissions warranty separate.

Can I in-frame one cylinder only?

Possible patch job $3,000–$6,000 — risk if other cylinders near limit.

Use calculator before quote?

Yes — engine overhaul cost tool models parts and labor for your engine.

Related tools: Use our engine overhaul cost for quick estimates and planning.

Related reading: diesel injector replacement cost breakdown, turbo rebuild vs replace cost comparison, diesel oil analysis how to read.

Machine shop line-bore adds $1,200–$2,400 when main bearing saddles measure out of round beyond 0.002 inch.
